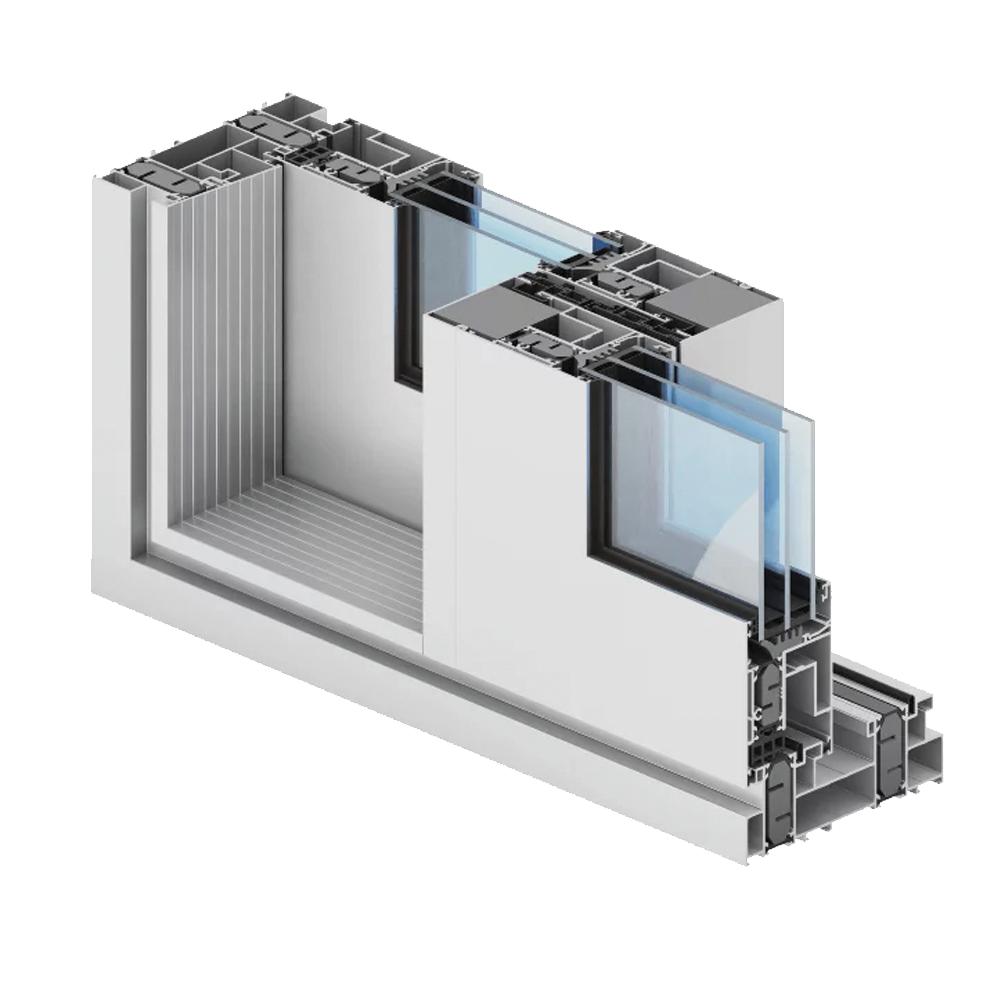

HS ULTRAGLIDE
High-performance aluminum sliding and lift-sliding door system designed for extremely large glazing areas. ULTRAGLIDE meets advanced requirements for energy efficiency, structural stability, aesthetics, and security. Available in standard, low-threshold, and 90° corner-opening versions.
| Feature | Value |
|---|---|
| System | UG / UG i / UG i+ |
| Material | Thermally insulated aluminum |
| Frame depth | 6.02″–9.41″ |
| Leaf depth | 2.64″ |
| Glazing range | 0.55″–2.05″ |
| Max leaf height | 129.9″ |
| Max leaf width | 137.8″ |
| Max leaf weight | 551 lb sliding / 882 lb lift-sliding |
| Acoustic insulation | 43 (–2, –6) dB |
| Frame structure | 3, 5 or 7-chamber profiles |
| Panel configurations | 2, 3 or 4 panels on 2-track system |
| Threshold options | Standard / low threshold |
| Hardware compatibility | Manual or automatic closing mechanisms |
| Thermal inserts | 2.05″ with glass fiber reinforcements |
| Insect screen | Compatible with Flyscreen system |
Advantages
- Dedicated for ultra-large sliding and lift-sliding doors
- Max sash size: 129.9″ height × 137.8″ width
- Max weight per sash: 551 lb sliding / 882 lb lift-slide
- Excellent thermal insulation with advanced 0.87–1.10″ inserts and separators
- Multiple frame structures: 3, 5, or 7 chambers
- Available with low threshold or 90° corner-opening solution
- Glazing up to 2.05″ – suitable for double or triple glazing
- Supports manual and automatic opening hardware
- Compatible with Flyscreen system for insect protection
- Rich color palette: RAL, wood-look, anodized, and bi-color options
