SMART SLIDE NEO

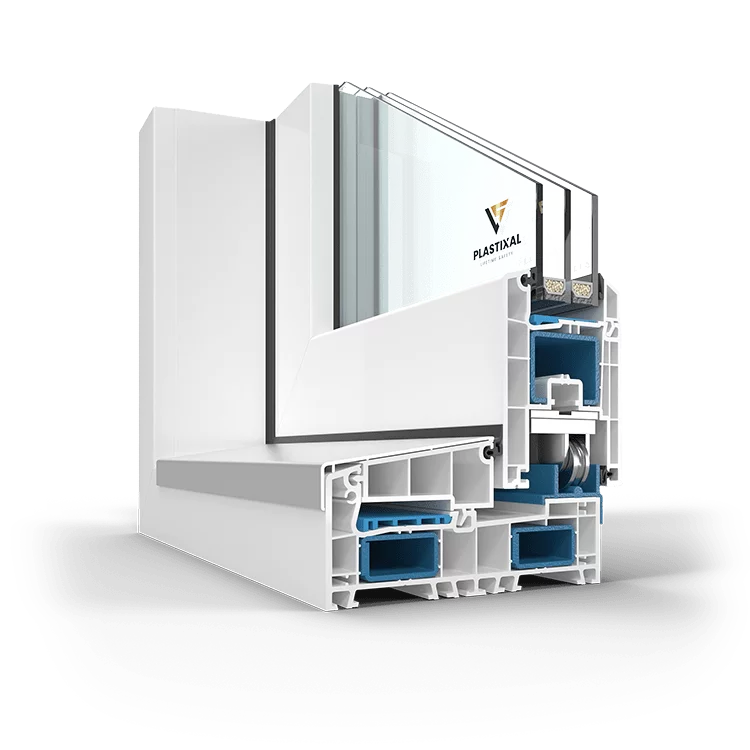

Smart-slide is a modern sliding patio door system that combines advanced technical performance with outstanding user comfort. It serves as an attractive alternative to PSK and traditional patio systems and is suitable for both residential and commercial buildings
| Parameter | Value |
|---|---|
| Installation depth | 4.06″ |
| Maximum glazing depth | 2.63″ |
| Number of gaskets | 2 |
| Number of chambers | 5–6 |

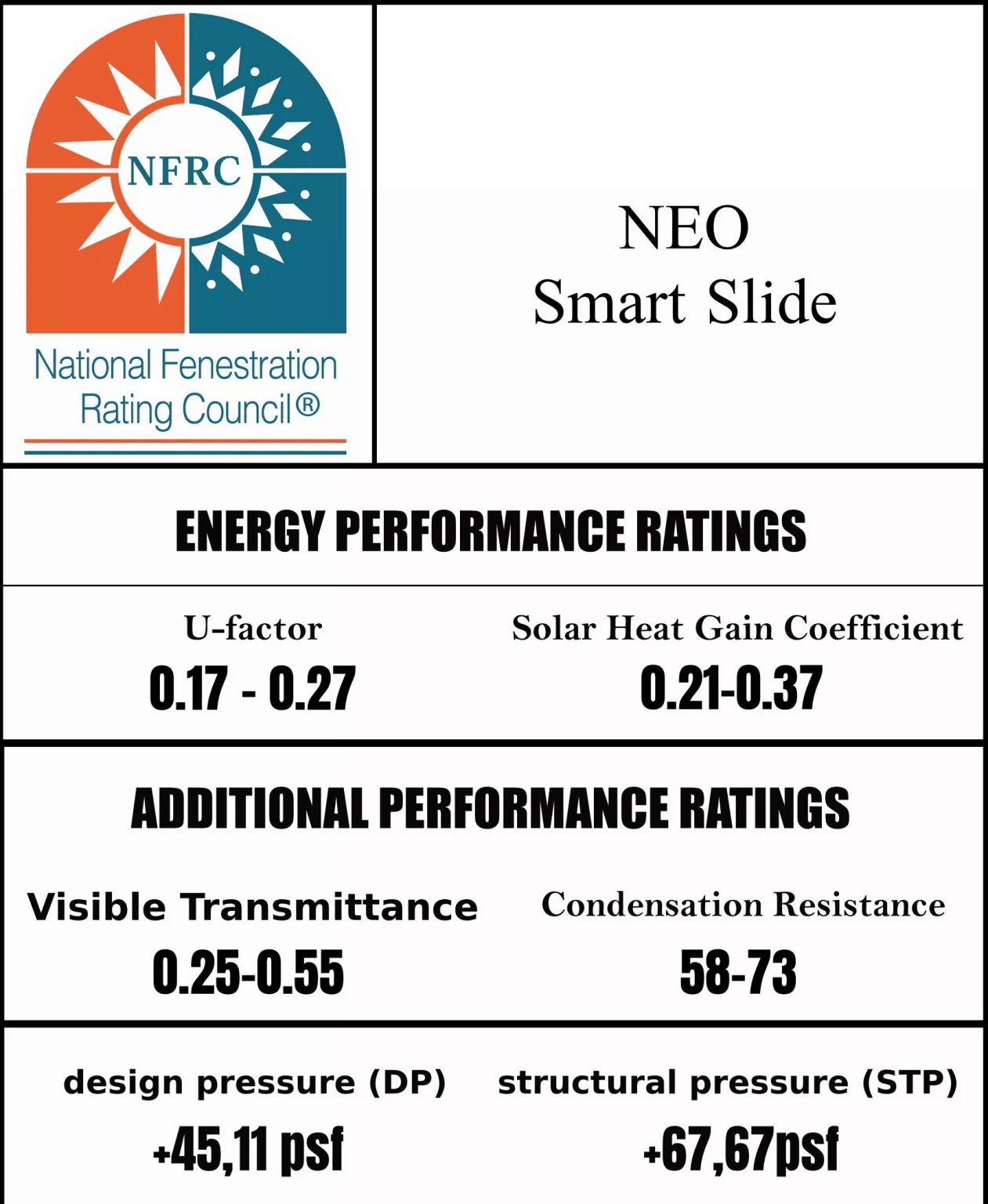

| U-factor | from 0.17 to 0.27 Btu/h·ft²·°F |
| Solar Heat Gain Coefficient | 0.21–0.37 |
| Visible Transmittance | 0.25–0.55 |
| Condensation Resistance | 58–73 |
| Design Pressure (DP) | +45.11 psf |
| Structural Pressure (STP) | +67.67 psf |
| Available operation types | Fixed, Casement, Hopper, Tilt & Turn |
| Profile reinforcement | Steel |
Advantages of Smart Slide Neo
High tightness
Excellent air, wind, and water resistance thanks to optimized sash sealing and multi-point locking around the frame.
Space-saving
No inward sash movement required, maximizing usable interior space.
Modern design and color options
Available with a wide range of decorative foils (“Aludec,” “Woodec,” and others) and optional “aluskin” aluminum shells.
Flexible configurations – Two opening schemes available:
- Scheme A: 2-panel system with one sliding sash
- Scheme C: 4-panel system with two sliding center sashes
Certified performance – Meets stringent U.S. standards with NFRC-certified values
